Vivitek-Products-DU775Z-UST

Vivitek

DU775Z-UST

A compact ultra-short-throw laser projector with high brightness for commercial application

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

All-new design DU775Z-UST is a WUXGA ultra short throw laser projector that supports up to a 150” large image from a short distance. With 5,000 lumens of brightness and 92% Rec. 709 color coverage, DU775Z-UST delivers stunning and impressive color accuracy. This projector features new generation laser light source to increase brightness, efficiency, and reduce size. Supporting 0.25 Ultra short throw lens, 360 ° & portrait projection , 24/7 operation capability, the new DU775Z-UST is perfect for education and business applications where the space is small or limited.

Key Features

Supports a large projection size with 0.25 ultra-short-throw

The DU775Z with its 0.25 ultra-short throw design can support up to 150- inch image. A 100-inch large and clear image from a distance of just 17 cm to save the space.

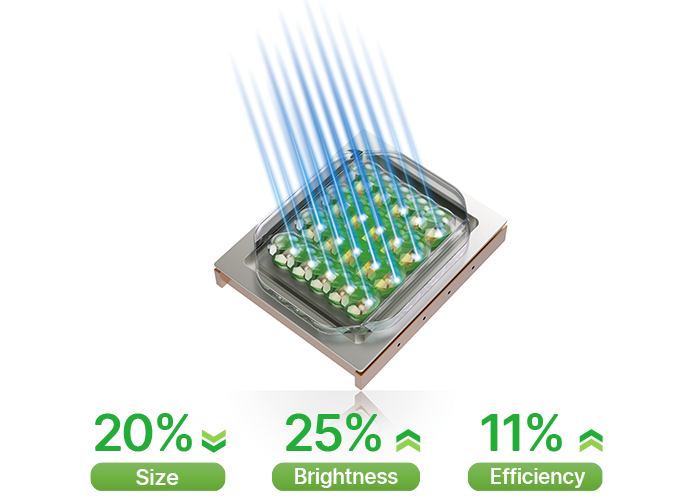

Brightness and Color Performance

With Vivitek’s advanced laser technology, DU775Z-UST increases brightness, efficiency and covers 92% color Gamut of REC.709, providing impressive and excellent true color performance.

Bright images in any environment

The DU775Z-UST features 5,000 lumens of brightness and a high contrast ratio 2,500,000: 1 to offer sharp and bight images in any environment with ambient light. reduced need for maintenance.

High Standard Anti-Dust Protection

The optical system, from the laser light source to lens is completely sealed and rated IP5X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.

PJ-Control Tool

Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.

Flexible Installation and Portrait Projection Capability

This projector has no limit for installation with angle. Dynamic installation options such as 360° rotation and portrait applications allow images to be projected onto ceilings, walls, floors or angled signage.

24/7 Operation

Vivitek’s laser light source is good for 30,000 hours of operation in “Eco Mode” and is approved for 24/7 operation. Delivers high stability and reliability for commercial applications.

Specifications

Display

Projection System

1-Chip DLP™ 0.48 inch

Resolution

WUXGA (1920 x1200)

Light Source

Laser

Optics

Brightness

5,000 lm

Brightness Uniformity

90%

Contrast Ratio

2,500,000:1 (Full On/Off)

Light Source Life

5,000 hrs(Normal) ／8,000 hrs (Eco) ／12,000 hrs (Long Eco)

Lens Type

Fixed

Zoom Ratio

N/A

Lens Throw Ratio

0.25 : 1

Lens Shift - Horizontal (Full Image Width)

N/A

Offset (Full Image Width)

144%

Geometry Adjustment

Keystone Correction

Yes (V)

Four Corner Adjustment

N/A

I/O Terminal

HDMI

1.4a x2

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

In x1 / Out x1

3D Sync

Out x1

RJ45

LAN x1

RS-232

In x1

Wire Remote

N/A

Speaker

10W x2

USB

Type A (Power Only 5V/2A,5V1A) x2 mini-B (Service / interactive) x1

12V Trigger (mini Jack)

5 BNC

Audio

Audio-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

305W (Normal) / 240W (Eco)

Standby Power

< 0.5W (Network Off), < 2.0W( Network On)

Acoustic Noise ±5%

Normal 33dB / Eco 30dB

Dimension ±2%

380 * 405 * 150 mm

Weight ±1kg

9 kg

3D Display

Active / Passive

24x7 Operation

N/A

Dust Proof*4

N/A

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Documentation

Flyer

User Manual

Quick Start Guide

Software

Accessories

VWD-01

VWD-01 is a Full HD wireless display receiver accessory for support all of Vivitek projectors
