DU3661Z
A compact size laser projector for meeting rooms
Overview
Key Features
Specifications
Documentation
Accessories
Overview
Key Features
Specifications
Documentation
Accessories
Overview
With weighting only 7kg, the DU3661Z is a compact laser projector and offers up to 5,000 lumens of brightness, designed for meeting room installation without unnecessary bulk burden. This projector comes with up to three HDMI ports s and HDBaseT with a wide 1.5x Zoom ratio and vertical lens shift for easy installation convenience and flexibility.
Key Features
Key Features
The DU3661Z provides up to 5,000 lumens of high brightness, 3,000,000: 1 contrast ratio and features the latest color technology to deliver a perfect image display.
The DU3661Z is equipped with a 1.5X big zoom optical lens and supports a throw ratio of 1.39 to 2.09:1. It can provide flexible projection distance installation in any challenging environments. With the horizontal/ vertical lens shift, even if the projector cannot be placed in the middle position, it can be flexibly adjusted to provide a perfect ratio image.
Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.

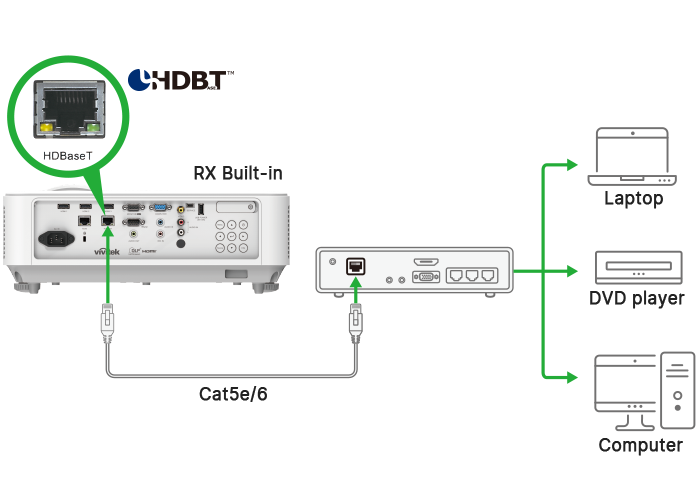

The DU3661Z has built-in HDBaseT™ interface for long-distance signal transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation, saving time and costs.The DU3661Z has built-in HDBaseT™ interface for long-distance signal transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation, saving time and costs.
Supports 360° no limitation on projection angle, vertical / horizontal keystone, and 4-corner geometric adjustment, allowing for almost unlimited mounting flexibility.
Vivtek’s laser light source is good for 30,000 hours of operation in Eco Mode and support continuous 24/7 operation. It delivers high stability and reliability for commercial applications.
All components and materials in Vivitek’s projectors follow the green guidelines of RoHS. The projector is used laser light source for up to 30,000 hours (Eco Mode), guaranteeing a long service life which greatly reduces energy consumption and maintenance costs.
Specifications
Specifications
Display
Projection System
1-Chip DLP™ 0.67 inch
Resolution
WUXGA (1920 x 1200)
Light Source
Laser
Optics
Brightness
5,000 lm
Brightness Uniformity
85%
Contrast Ratio
3,000,000:1 (Full On/Off)
Light Source Life
20,000 hrs (Normal)
Lens Type
Fixed
Zoom Ratio
1.5x
Lens Throw Ratio
1.39~2.09 : 1
Lens Shift - Horizontal (Full Image Width)
N/A
Offset (Full Image Width)
+106.2% ~ +119.4%
Geometry Adjustment
Keystone Correction
Yes (H/V)
Four Corner Adjustment
Yes
I/O Terminal
HDMI
1.4a x3 (one with MHL)
DisplayPort
N/A
SDI
N/A
DVI-D
N/A
YPbPr
N/A
D-Sub
In x1 / Out x1
3D Sync
N/A
RJ45
HDBaseT x1, LAN x1
RS-232
In x1
Wire Remote
N/A
Speaker
10W x1
USB
Type A (Power Only 5V/1.5A) x1 mini-B (Service) x1
12V Trigger (mini Jack)
N/A
5 BNC
Audio
Audio-In (RCA) x1 / Audio-In (Mini-Jack) x1 / MIC-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1
System
Power Supply
AC 110-240V 50/60Hz
Power Consumption ±5%
340W (Normal) / 270W (Eco)
Standby Power
< 0.5W (Network Off)／< 2.0W( Network On)
Acoustic Noise ±5%
Normal 35dB / Eco 33dB
Dimension ±2%
395 x 340 x 135 mm
Weight ±1kg
7 kg
3D Display
Active
24x7 Operation
Yes
Dust Proof*4
IP5X
Operation Oreinetation
360˚ free installation
Operation Environment
Temp. 5~40˚C / Humidity10~85%
Storage Environment
Temp. -10~60˚C / Humidity 5~95%
