Vivitek

DX330

Compact and High-value Projectors

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

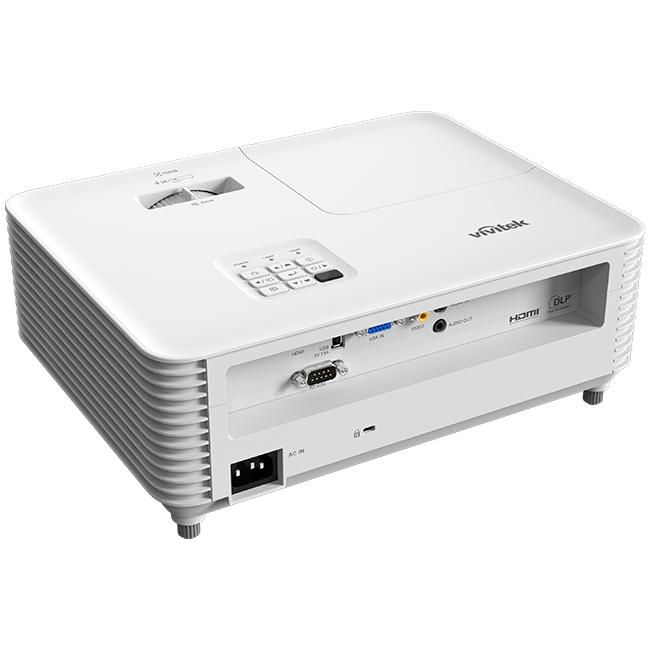

The DX330 features a high brightness and 30,000:1 contrast ratio to deliver 300" image even in any bright environment. Compact size, low weight, and quick installation make this series ideal for classrooms and meeting rooms. With top-side cover and energy-saving design, this series is easy to replace lamp and has a long lamp life up to 15,000 hours.

DX330 DX330

Key Features

Key Features

DLP Darkchip3 & BrilliantColor Technology

The DX330 supports DLP® and BrilliantColor™ technologies for distinct and vibrant images. The 6-segment (RGBYCW) color wheel not only makes the image more vivid and saturated, but also reproduces color performance.

Bright Images in Any Environment

Packed with up to 4,000 lumens of brightness and a high contrast ratio 30,000: 1, the DX330 provides sharp and bight images in any environment with ambient light.

Potable & Lightweight

Featured under 3kg, the DX330 is potable and easy to carry and install between home and school or office.

Long Lamp Life

With high-efficiency and energy-saving lamp, this series  projector has a long life span of up to 15,000 hours in Eco mode to reduce lamp replacement times.

3D Ready

The DX330 features full suite of display connections, including HDMI, composite video, and VGA-in. The HDMI port allows users to project 3D content via DLP Link and Blu-Ray 3D.

Specifications

Specifications

Display

Projection System

1-Chip DLP™ 0.55 inch

Resolution

XGA (1024 x 768)

Light Source

UHP Lamp

Optics

Brightness

4,000 lm

Brightness Uniformity

80%

Contrast Ratio

30,000:1 (Full On/Off)

Light Source Life

5,000 hrs (Normal) / 6,000 hrs (Eco) / 15,000 hrs (Long Eco)

Lens Type

Fixed

Zoom Ratio

1.1x

Lens Throw Ratio

1.94~2.16 : 1

Lens Shift - Horizontal (Full Image Width)

N/A

Offset (Full Image Width)

115%

Geometry Adjustment

Keystone Correction

Yes (V)

Four Corner Adjustment

N/A

I/O Terminal

HDMI

1.4a x1

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

In x1

3D Sync

N/A

RJ45

N/A

RS-232

In x1

Wire Remote

N/A

Speaker

10W

USB

Type A (Power Only 5V/1.5A) x1

12V Trigger (mini Jack)

N/A

5 BNC

N/A

Audio

Audio-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

240W (Normal) / 200W (Eco)

Standby Power

< 0.5W

Acoustic Noise ±5%

Normal 31dB / Eco 27dB

Dimension ±2%

313 x 236 x 120 mm

Weight ±1kg

2.6 kg

3D Display

Active / Passive

24x7 Operation

N/A

Dust Proof*4

N/A

Operation Oreinetation

Up & Down (lamp life not gurantee)

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Documentation

Documentation

User Manual

Download

Quick Start Guide

Download

Accessories

Accessories

VWD-01

VWD-01 is a Full HD wireless display receiver accessory for support all of Vivitek projectors
